CEILFIT radiant panel for grid type ceiling

Radiant panels for grid ceilings

The Mark CEILFIT gives a comfortable work and living environment through heating and cooling by convection and radiation. It is easy to regulate zones or rooms individually to ensure a pleasant surrounding. Due to the exclusion of radiators, extra wall and floor space is made available.

Our panels are compatible with grid type ceilings and can replace the standard tile without any additional work to the grid. The standard panels are available in common standard grid dimension, or as custom dimensions on request.

The Mark CEILFIT is constructed of RAL 9010 powder coated 0,7 mm steel sheet fused to copper tube. The copper tubing allows a quick and efficient heat or cooling transfer. The copper tubing is a 10×0,4mm high quality precision tubing that can withstand pressure up to 6 bar.

Panels can be optionally insulated with mineral wool with an aluminium foil layer. Dummy panels can be fitted to accomodate lightning, sensors, ventilation or other additions to the ceiling.

The panels are also available with perforation for a better sound absorption.

To support the weight of a fluid filled panel we strongly advise to add suspension wires from the panels to a structural part of the building or ceiling. The panels are accomodated with several holes to fix the supension brackets or cables.

Intermediate panels are available for easy connection of a range of CEILFIT panels.

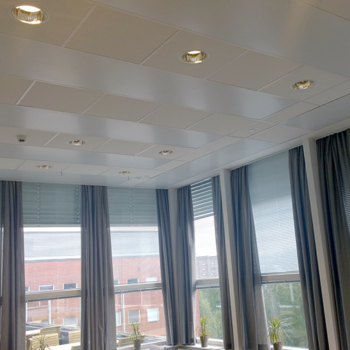

The Mark CEILFIT can be used in offices, schools, hospitals, public buildings and clinics.

All CEILFIT products are in accordance with the NEN-EN 13964 regulation.

Features
  • Easy to clean
  • Frees up floor and wall space
  • Rapid warm up times, due to low water content
  • Low air movement
  • Low pressure drop (operating pressures)
  • Low whole life costs – lack of moving parts
  • Easily installed in standard T-Grid ceiling
  • Cost efficient heating
