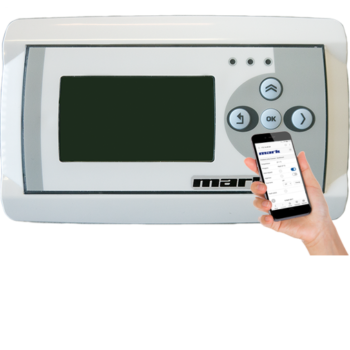

Zone control Infra

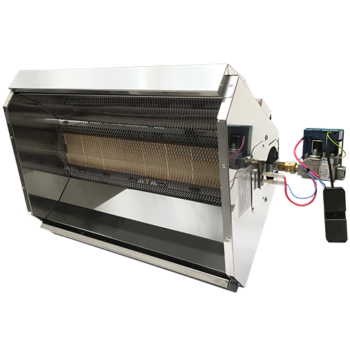

Digital zone control for Mark Infra radiant heaters

Digital zone control suitable to on/off, high/low or modulated control multiple Mark Infra radiant heaters based on room temperature. With the ability for area control and PIN security to modify settings.

Specifications
  • Delivery: Control panel with external display
  • Size ext. display (WxHxD): 160x98x43mm
  • Languages: English, French, German and Dutch
  • Protection class: IP20
  • Mounting of display: built-in / wall installation
  • Number of areas: 3
  • Number of Infra’s per area: 6
  • Temperature range: 2 / 40°C per 0,5°C.
  • Operating options: Auto, continuous day, continuous night or continuous off
  • Day-/night temperature monitoring with reading of the actual room temperature on the display
  • Automatic switching between summer/winter time.
  • Control: on/off, high/low or modulating
  • High/low control: Auto 1, 2 or 3K
  • Time switch with week program (7 switch blocks)
  • Overtime timer: 0-180 min.
  • Signaling of burner malfunction.
  • Reset option to release a burner malfunction per area.
  • PIN security to modify for example switching times and temperatures.
  • Temperature sensor: PT1000 (black bulb) to order seperately (required per area)
  • Modbus TCP/IP
  • Power: 230Vac / 50Hz
  • Embedded webserver
Article code
  • 3003795
Accessoires
  • External black bulb sensor
    Order code: 0629082
