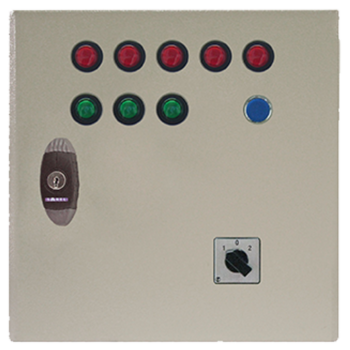

Control cabinet C10

Control cabinet for controlling a Calflo with on/off fan based on room temperature with minimum inlet temperature restriction.

Specifications
  • Steel box with cylinder lock
  • Regulator for the room temperature and minimum inlet temperature restriction using 2-10Vdc control signal
  • Selector for heat/off/ventilate
  • Failure lamps for:
    – Burner failure
    – Intake air failure
    – Burner fan thermally off
    – Maximum failure
    – Dirty failure
  • Operating lamps for:
    – Burner on
    – Burner in operation
    – Release of control
  • Reset button to reset a burner failure
  • voltage free contact to operate extraction (24Vmax)
  • voltage free contact (supply to third parties) to check whether extraction is operating
  • A room temperature sensor supplied separately
  • A duct temperature sensor supplied separately for the minimum inlet temperature restiction
Article code
  • 3002231
