AWSV Dry Cooler

V-Dry coolers with a single row of fans

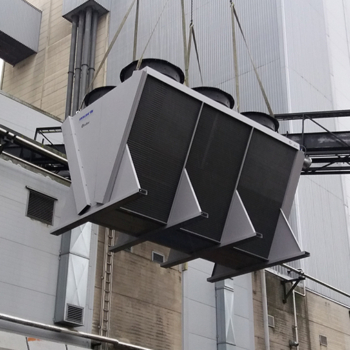

De Mark AWSV is a serie of Dry Coolers with two coils and a single row of fans, arranged in a “V-shape”. Both the standard version and the low-noise version are available in cooling capacities from 130 kW to 964 kW. Larger capacities on request.

The AWSV Dry Coolers are compact and robust. They are made of galvanized steel for both horizontal and vertical mounting using the correct kit. The units are equipped with anchor and lifting points for placement.

The chassis and housing are fully protected with a paint layer with a high corrosion resistance that offers maximum weather resistance. The parts are each coated in RAL 9002 prior to assembly.

Mark single row V-Dry Coolers are equipped with heat exchangers with a copper tube and aluminum fins. They are equipped with a steel threaded connection.

The fans incorporate 3-phase asynchronous external rotor motors with IP54 protection level, class F insulation, with the possibility of connecting them in star or delta, having in this way two speeds of operation.

  • Optimized EC fans
  • Multi circuit water connection
  • Compact
  • Quiet
  • Robust
  • Economical
  • Completely wired up to the terminal box
