MISTRAL MDX VRF heat pump system

Air-to-air VRF heat pump system for heating and cooling large spaces

The Mark MISTRAL MDX is a VRF system, which is specially developed for energy-efficient heating and cooling of large spaces. The combination of an air-to-air heat pump (outdoor unit) with a compact air heater / cooler (indoor unit) ensures excellent performance. Thanks to the exten sive setting options, the installation can be fully adapted to the use of the building and the wishes of the users.

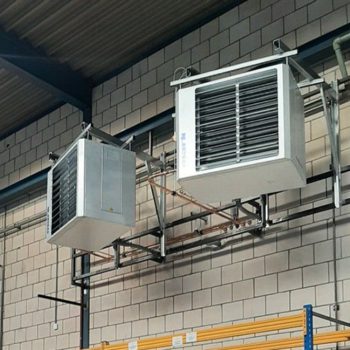

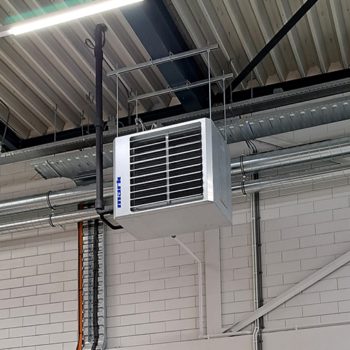

Thanks to the long available pipe lengths (90m MDX 33/ 170m MDX 56) and the wide temperature range, the MISTRAL MDX has many application options. Suitable for heating and cooling garages, warehouses, workshops, distribution centers and showrooms.

Ambient temperature range (indoor unit)
  • Cooling: +17°C – +43°C
  • Heating: +7°C – +25°C
Product features

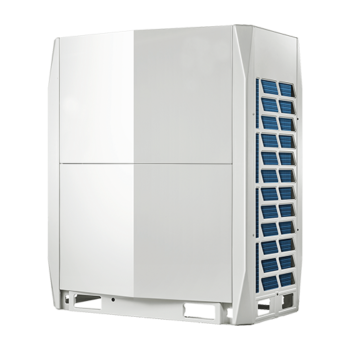

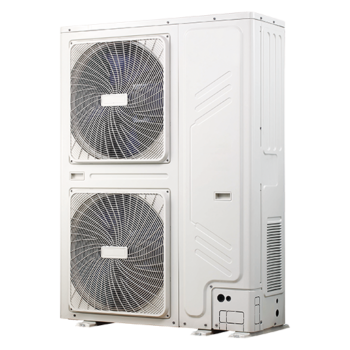

  • Available with powers of 33 kW and 56 kW
  • Air to air heat pump VRF-system
  • Cooling and heating
  • Large temperature range
  • Indoor unit with EC fan
  • Energy efficient
  • Pipe length: (90m MDX 33/ 170m MDX 56)
  • Refrigerant: R410a
  • Optional: integrated condensate pump
