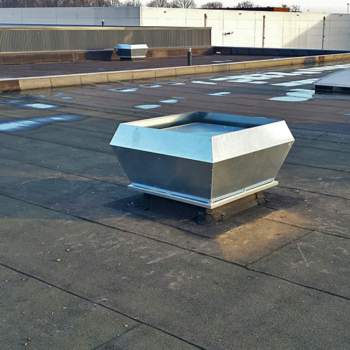

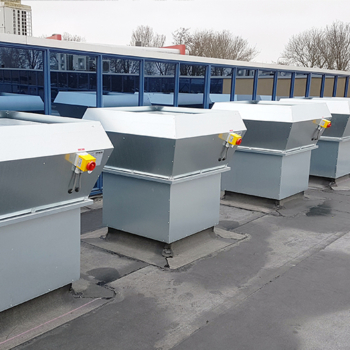

MDV BLUE roof fan

Sustainable and efficient roof fan for air extraction from Mark

The Mark MDV BLUE roof fan is suitable for extracting air from buildings and features the latest developments in the field of fans, including the efficient EC technology. This guarantees a very low power consumption combined with excellent performance.

The MDV BLUE roof fan is available in various sizes and air displacements varying from 300 m³/h to 15.000 m³/h. The unit is supplied with a radial fan. The casing is made of sendzimir plate.

The MDV BLUE can be used in factories, welding areas, offices and supermarkets.

Remote connection

Remote connection for the MDV BLUE is possible with the Pintherm Connect. The controller is equipped with an on/off contact and a 0-10VDC output. The settings of the thermostat can be read and/or modified with Modbus or Ethernet. This makes it possible to operate the roof fan remotely. The thermostat can also be connected to the BMS (building management system).

Features
  • Sharp pricing
  • EC technology
  • Reliable
  • High efficiency
  • Meets EU 1253
  • 300 m³/h to 15.000 m³/h
  • Low maintenance
  • Good chemical resistance
  • Complete BMS integration possible
Optional
  • Aluminum casing seawater resistant AlMg3
  • Controls: i.a. constant pressure, 0-10V, presence control, CO2 control, humidity control and temperature control.
