ECOFAN W destratification fan

Easy to use, and with energy savings of up to 30% on your gas consumption

Mark Climate Technology recommends an ECOFAN destratification fan with every air heater. A combination of these products provides optimum comfort and good heat distribution within the room. It is known that hot air rises which means that an air heater requires more time to heat up a room.  A thermostatically-controlled ECOFAN transports the warm blanket under the roof to the occupied area. As a result, the room heats up more quickly, and gas consumption can in some cases be reduced by up to 30%.

The ECOFAN destratification fan is available with various air displacements from 4,000 to 14,000 m³/h. The unit comes as standard with an isolator switch and a reverse operated room thermostat that switches on the fan when the area under the ceiling becomes hot.

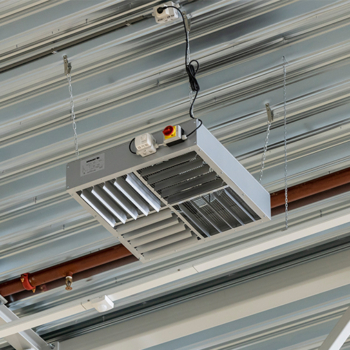

The ECOFAN can be used in construction halls, workshops, garages and logistics areas.

Remote connection

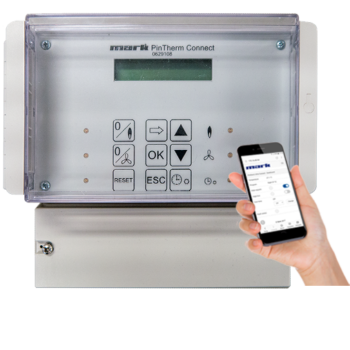

Remote connection for the Mark ECOFAN W is possible with the Pintherm Connect. The controller is equipped with an on/off contact and a 0-10VDC output. The settings of the thermostat can be read and/or modified with Modbus or Ethernet. This makes it possible to operate the destratification fan remotely. The thermostat can also be connected to the BMS (building management system).

Features
  • Aluzinc housing
  • Integrated thermostat
  • 4-sided downflow hood
  • Low maintenance
Optional: EC-motor

The ECOFAN is also available with speed controlled low noise EC-motor. Advantages:

  • The highest efficiency in case of speed control
  • Up to 50% energy saving in case of partial load
  • Almost completely linearly adjustable
  • Long lifetime
  • Low noise level
  • Integrated electronic thermal protection
Optional: EX-model

The device is also available in the Ex version with the following classification: Ex II 2 G c Ex e IIB T3.

Interested in the ECOFAN W destratification fan Request a quote
