TANNER MDC water-supplied air heater

Versatile warm water air heater with centrifugal fan

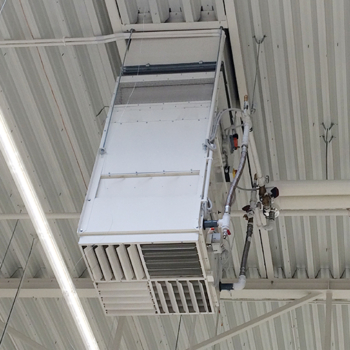

The TANNER MDC is a water-supplied suspended air heater which can expel air horizontally or vertically. The unit has a powerful centrifugal fan which means it is suitable for many applications. Mark offers a highly extensive range of accessories for the TANNER MDC allowing it to be aligned to specific client requirements. For example, the unit can be made suitable for external air connection in combination with filtering and a mixing box for the destratification of fresh external air.

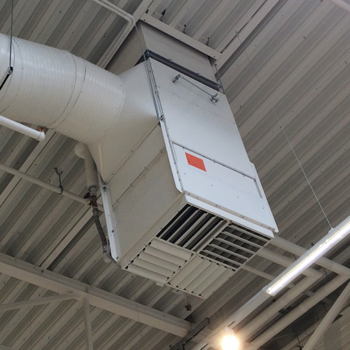

The MDC is highly suitable for connection to a duct system. The MDC is designed for use in showrooms, changing rooms, industrial halls and garages.

Remote Connection

Remote connection for the Mark TANNER MDC is possible with the Pintherm Connect. The controller is equipped with an on/off contact and a 0-10VDC output. The settings of the thermostat can be read and/or modified with Modbus or Ethernet. This makes it possible to operate the air heater remotely. The thermostat can also be connected to the BMS (building management system).

Features
  • Manufactured with a corrosion-resistant
  • Copper/aluminium heat exchanger
  • Highly versatile due to extensive configuration
  • External pressure up to 300Pa
  • Available as 230V or 400V
Optional: EC-motor

The advantages of an Low noise level EC-motor (230V/0-10V):

  • The highest efficiency in case of speed control
  • Up to 50% energy saving in case of partial load
  • Almost completely linearly adjustable
  • Long lifetime
  • Low noise level
  • Integrated electronic thermal protection
