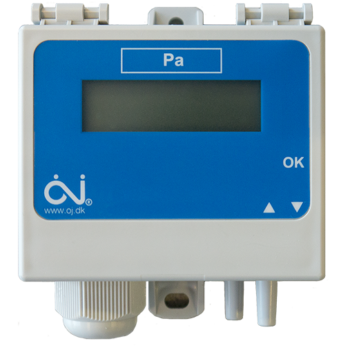

Active pressure & flow sensor with display

Pressure sensor for monitoring and control

Pressure sensor to monitor and control based on pressure difference or flow. The sensor can be connected to the Multifunctional controller.

Specifications

Measuring range: 0-2500Pa
Accuracy: -20/+40°C ±3 % (> 350 Pa), ±10 Pa (< 350 Pa)
Maximum pressure: 20kPA
Dimensions: 91x75x36mm (wxhxd)
Room temperature:
-20 / +40°C (operation)
0 / +50°C (display)
Protection class: IP54
Weight: 110g
Output: 0-10Vdc, 2-10Vdc, 0-20mA, 4-20mA
K-factor: 0.1 to 9999 m3/h can be modified to l/s.
Supply 24Vac ±15%, 50/60 Hz, 3.5-28Vdc
Setting pressure range: -50/+50 Pa, 0/100 Pa, 0/150 Pa, 0/300Pa, 0/500 Pa, 0/1000 Pa, 0/1600 Pa, 0/2500 Pa
Setting flow range: 100 m3/h, 300 m3/h, 500 m3/h, 1000 m3/h, 3000 m3/h, 5000 m3/h, 9999 m3/h, 30.00 m3/h x 1000, 50.00 m3/h x 1000, 99.99 m3/h x 1000
