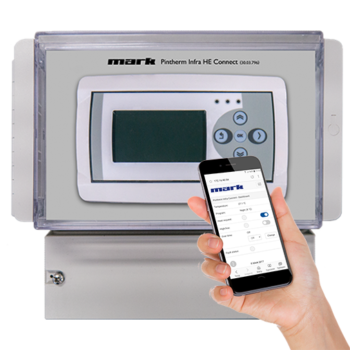

PinTherm Infra HE Connect | Mark Climate Technology

Digital temperature control for the Mark Infra HE

The PinTherm Infra HE Connect is a digital temperature control suitable for modulating control of one or more INFRA HE black tube heaters based on the room temperature. With the possibility of PIN code protection for changing the settings.

Specifications

Power: 230Vac / 50Hz
Dimensions: 376 x 300 x 120mm (WxHxD)
Protection class: IP54
Mounting of display: built-in / wall installation
Maximum number of Infra HE’s: 8
Temperature range: 2…40°C per 0,5°C
Operating options: Auto, continuous day, continuous night or continuous off
Day-/night temperature monitoring with reading of the actual room temperature on the display
Automatic switching between summer/winter time.
Control: modulating
Time switch with week program (7 switch blocks)
Overtime timer: 0-180 min
Signaling of burner malfunction
Reset option to release a burner malfunction per area
PIN security to modify for example switching times and temperatures
Languages: English, French, German and Dutch
Fuse: 10A
Modbus TCP/IP
Embedded webserver

Article code

3003796

Accessoires

External black bulb sensor
Order code: 0629002
