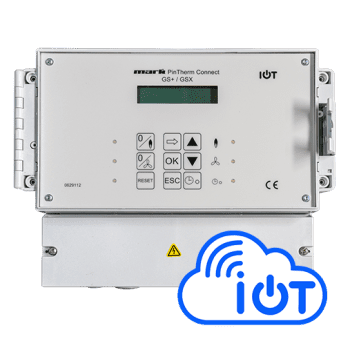

PinTherm Connect GS+/GSX IoT/WiFi digital room thermostat

Digital weekly clock thermostat for Mark air heaters

The PinTherm Connect GS+/GSX IoT/WiFi is a digital weekly clock room thermostat for controlling a gas-fired air heater. The thermostat features an on/off contact and a 0-10 VDC output.

Remote Connection

The PinTherm Connect GS+/GSX IoT can be controlled from anywhere in the world via a secure Cloud environment in the browser of your PC, tablet or smartphone. No need to open a firewall port for this. The optional WiFi module also eliminates the need for a LAN cable for the thermostat. The thermostat’s settings can also be read and/or changed using Modbus or Ethernet. The thermostat can also be linked to the BMS (building management system).

Specifications
  • Power supply: 230Vac / 50Hz
  • Own consumption: < 15 W
  • Clock : 24 hour clock with automatic summer/winter time switching
  • Switching programs : 3 switching programs a day
  • Switching differential: 0,1 – 3K
  • Dimensions: 212 x 187 x 120mm (lxbxh)
  • Weight: 1340 grams
  • Protection class: IP54
  • Installation environment :
    – Transport/storage: -20°C until +70°C
    – Operational: -10°C until +60°C
    – Relative air humidity: 0-90% not condensating
  • Switch contact(s):
    – Heating: 230Vac/16A (4A)
    – Others: 230Vac/10A (2,5A)
  • Temperature setting : 0 until 39°C per 1°C adjustable
  • Overtime timer : adjustable 1, 2 or 3 hours (060, 120, 180)
  • Calibration: adjustable from -3.5°C until +3.5°C
  • Languages: NL/EN/DE/FR/PL/RO
  • Fuse: 6A
  • Equipped with Ethernet, Modbus and Cloud control
Article code
  • 0629112 (IoT)
  • 3003873 (IoT+WiFi)
Accessoires
  • External room temperature sensor (article code: 0629086)
