HMI-EC Controller

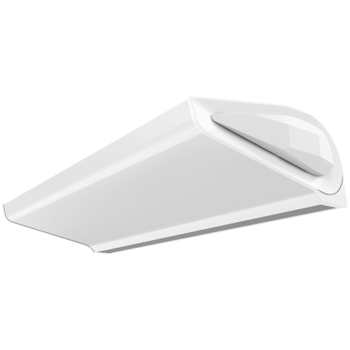

Controller for Easyair air curtains

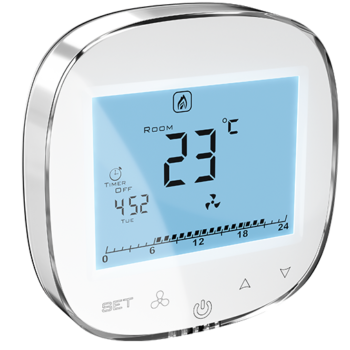

The HMI-EC controller is an electronic controller with an LCD screen especially for the range of EASYAIR air curtains. The controller manages the performance of an air curtain by means of fan revolutions and control of the air heating capacity. The HMI-EC is equipped with a Modbus RTU port that supports communication with BMS systems. The controller is suitable for all types of EASYAIR air curtains.

Specifications

Power supply: 1*90-240 VAC 50/60 Hz
Type of temperature sensor NTC, 10 kΩ @ 25 °C
Temperature setting: 0 °C…50 °C
Precision temperature measurement: ±0.5 °C
Relative humidity: 10-90% with no condensation
Protection class: IP20
Dimensions: 86 x 86 x 48 mm
Weight: 150 gr

Article code

0699150
