Destratification controller RJ402

Control for destratification fans

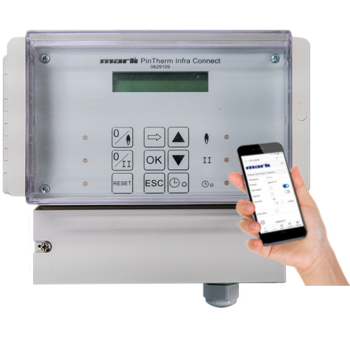

Automatic energy-saving system for continuous control of ECOFAN ceiling fans depending on the temperature difference. Incl. two temperature sensors: 1. sensor in the living area, 2. sensor for ceiling mounting. The RJ402 control is supplied in combination with the PinTherm Connect.

Specifications

Operating voltage: 230Vac – 50Hz
Power consumption: < 0,5W
Permissible ambient temperature: 0° – 50°C
Control range: 0° – 50°C
Hysteresis: 2° – 35°C
Output: Switch contact
Maximum permissible continuous current: 5A AC1
Temperature sensor: 10K S

Article code

3002660
