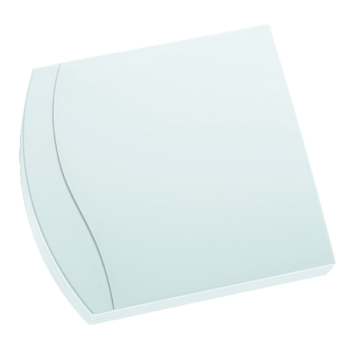

CO₂ sensor for measuring carbon dioxide

CO₂ sensor with several measurement ranges

The CO₂ sensor detects CO₂ content in the air. The detection range of this sensor is calibrated for standard applications such as monitoring of residential rooms or conference rooms.

Specifications

Power supply 24 V AC/DC.
Several measurement ranges possible: 0…2000ppm, 0…5000 ppm, 0…10000ppm.
Output signal 0…10V.
Measuring accuracy: +/- 70ppm plus 5% of measured value.
Pressure dependence: +/- 1,6% / kPa.
Warm-up time: approximately 1 hour.
Ambient temperature: 0…50°C.
Reaction time: approximately 1 minute.
Electrical connection: 0,14 – 1,5 mm2.
Plastic enclosure (RAL 9010).
Dimensions 98 x 106 x 32 mm.

Aricle code

0629165
