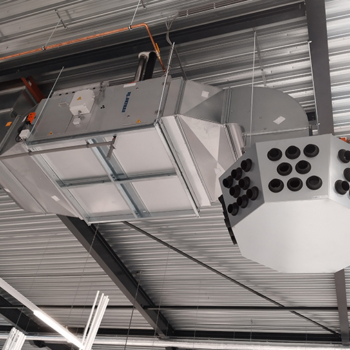

GC+ air heater with a centrifugal fan

Environment friendly heating with a standard special

In addition to the high efficiency air heater, the Mark range also includes a high performance direct fired heater with a centrifugal fan. The GC+ is particularly suited for connection to duct systems, or systems where high pressure is required. This condensing unit provides efficiency greater than 106% (lower value). Heat is generated via a modulating (5:1) premix burner which results in very low gas consumption.

An extensive range of additional sections has been developed for the GC+. This ensures the standard GC+ can be simply and affordably adapted to any project specification. The comprehensive capacity range (15-150 kW) also means the area of application for this type of equipment is virtually limitless. The GC+ can additionally be incorporated into an air handling unit.

The GC+ direct fired heater is designed to heat garages, warehouses, workshops, schools and sports halls among other applications, with or without a duct system.

Remote Connection

The GC+ is operated using an Optitherm+ clock thermostat or an Interface+ module that allows a connection with the BMS (building management system) via Modbus or a 0-10V contact. Other operating options are also available.

Hybrid control

Do you want to reduce the gas consumption of your industrial hall or space? Then take advantage of our Hybrid Controller. This hybrid controller allows you to combine an existing or new gas-fired air heater with our Mistral MDX heat pump system. The installed capacity of the Mistral MDX unit can be low because the gas-fired heater(s) provide the capacity needed during severe cold. This way one saves significantly on energy costs.

Features
  • Centrifugal fan with forward curved blades
  • 3-phase electric motor 1400 min-1
  • V-belt transmission
  • Shock absorbers
  • Low noise level
  • Variable air volume
  • Variable delta T
  • System air pressure up to 300 Pa
  • Fan outlet position: front side
  • Low maintenance
  • Modulation range 5:1
Options
  • Centrifugal fan with backward curved blades
  • Insulated fan casing
  • Outdoor version available
