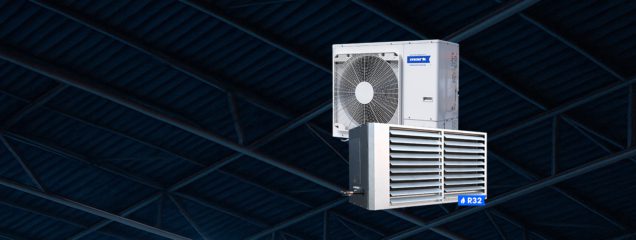

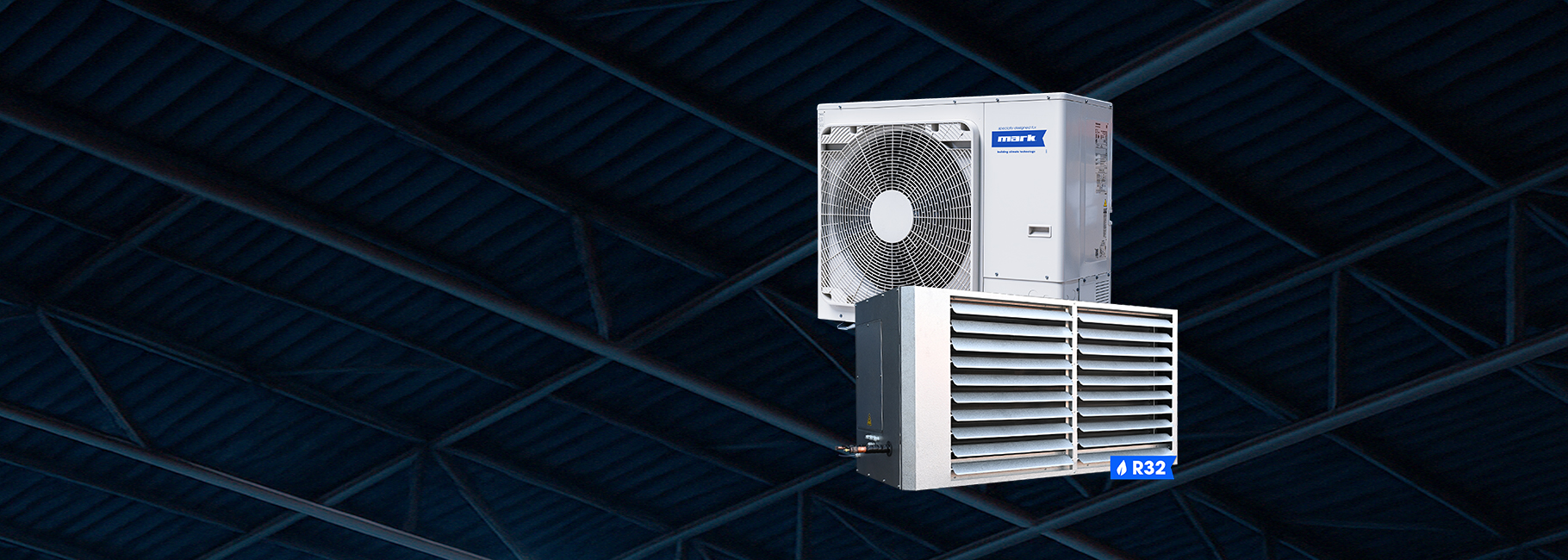

NEW: MISTRAL MDX 30/60 Heat pump system (R32)

Efficient and sustainable heating and cooling

The Mistral MDX is specially developed for energy-efficient heating and cooling of large spaces. The combination of an air-to-air heat pump (outdoor unit) with a compact air heater/cooler (indoor unit) ensures excellent performance and a versatile, energy-efficient climate solution.

Environmentally friendly and flexible

Thanks to the use of R32 as a refrigerant, this new generation MDX is a more environmentally friendly climate solution. The long available pipe length and the wide temperature range make the Mistral MDX versatile. Because the Mistral MDX has been specifically developed for industrial use, it is extremely suitable for heating and cooling e.g. garages, warehouses, workshops, distribution centres and showrooms.

Hybrid-ready: flexible and cost-saving

The hybrid preparation ensures that the system works seamlessly with new or existing gas-fired air heaters. This means that the installed capacity of the Mistral MDX can remain lower, because the gas-fired units provide the required capacity in severe cold.

The Mistral MDX 30 and MDX 60 are flexible climate solutions that provide significant savings on energy costs. Contact us for the possibilities.

Hybrid control

Do you want to reduce the gas consumption of your industrial hall or space? Then take advantage of our Hybrid Controller. This hybrid controller allows you to combine an existing or new gas-fired/electric air heater with our Mistral MDX heat pump system. The installed capacity of the Mistral MDX unit can be low because the gas-fired/electric heater(s) provide the power needed during severe cold. This way one saves significantly on energy costs.

The MDX 30/60 is available from mid-May.

Product Features

Product Features

  • Available in capacities of 24 kW (MDX 30) and 48 kW (MDX 60)
  • Robust design
  • Very easy to maintain
  • Runs on R32, energy-efficient and more environmentally friendly
  • Air-to-air heat pump
  • Cooling and heating
  • Large temperature range
  • Indoor unit equipped with EC fan
  • Suitable for hybrid setup with gas-fired or electric heaters
  • Optional integrated condensate pump
  • Pipe lengths up to 60 m
  • Refilling not necessary up to 30 m
  • Isolator switch pre-assembled on indoor unit
  • Ambient temperature range indoor unit
    – Cooling: 17°C (80%) to 41°C (25%)
    – Heating: 7°C to 24°C
Download the brochure
Pintherm Mistral

Pintherm Mistral

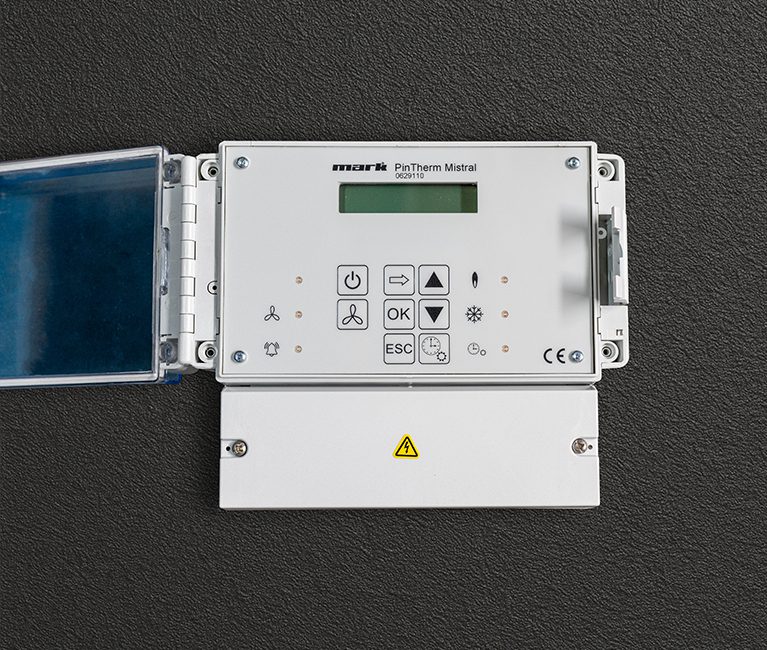

The Mistral MDX 30/60 can be controlled via the PinTherm Mistral, among others. The controller is equipped with an on/off contact and a 0-10 VDC output. The settings of the thermostat can be read and/or changed using Modbus or Ethernet. The thermostat can be linked to the BMS (building management system).

PinTherm Mistral room thermostat
