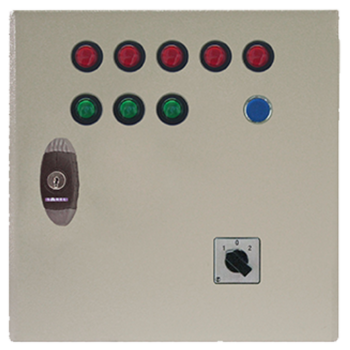

Control cabinet C10

Control cabinet for controlling a CALFLO with on/off fan based on room temperature with minimum inlet temperature restriction.

Specifications

Steel box with cylinder lock
Regulator for the room temperature and minimum inlet temperature restriction using 2-10Vdc control signal
Selector for heat/off/ventilate
Failure lamps for:
– Burner failure
– Intake air failure
– Burner fan thermally off
– Maximum failure
– Dirty failure
Operating lamps for:
– Burner on
– Burner in operation
– Release of control
Reset button to reset a burner failure
voltage free contact to operate extraction (24Vmax)
voltage free contact (supply to third parties) to check whether extraction is operating
A room temperature sensor supplied separately
A duct temperature sensor supplied separately for the minimum inlet temperature restiction
